Outdoor IP65 Solar Junction Box For Solar Power System with 90CM Cable

Group PV junction box
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2018-11-13
Item specifics
characteristicpotting glue filling
CertificationTUV
StandardEN 50548:2011+A1
Protection ClassClass two
Product namesolar panel junction box ip65 manufacturers
protection degreeIP67/65
Flame classUL94-V0
Width of copper ribbonup to 8mm
Insulation MaterialPPO
standardEN 50548:2011+A1
Description

Outdoor IP65 Solar Junction Box For Solar Power System with 90CM Cable


Whole image:








Basic datas :

High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact MaterialCopper alloy,tin plated

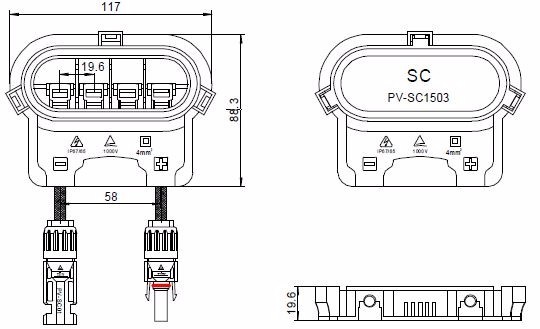

Overall Dimension117*88.3*19.6
Bonding modeSiliica gel
The bonding area5400mm2
ConnectorMC4


Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
