SC1502 black Junction box for big watt solar panel with 90CM Cable

Group PV junction box
Min. Order 10 piece
Terms of Payment L/C, T/T
Update Time 2018-11-14
Item specifics
characteristicpotting glue filling
CertificationTUV
StandardEN 50548:2011+A1
Protection ClassClass two
Certificate No.R50183265
Rated Voltage1000VDC
Test Voltage6000V(50Hz 1min)
Rated Current12A
Protection ClassClass II
Protection DegreeIP67
Description

SC1502 Junction box for big watt solar panel with 90CM Cable

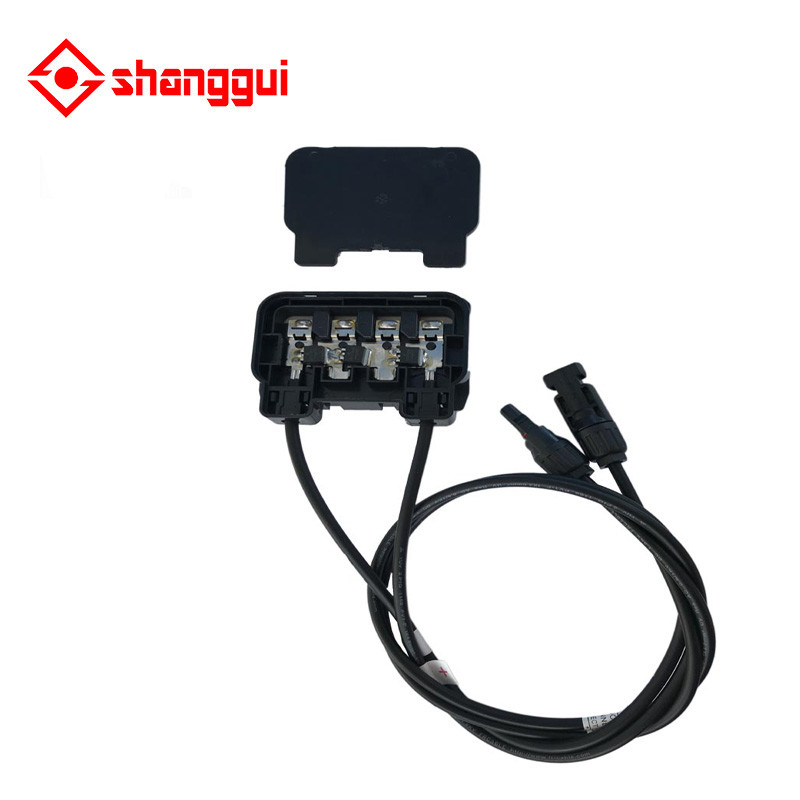

Whole image:













Basic datas :

High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact MaterialCopper alloy,tin plated
Overall Dimension95.4*73*15
Bonding modeSiliica gel
The bonding area5400mm2
ConnectorMC4


Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
